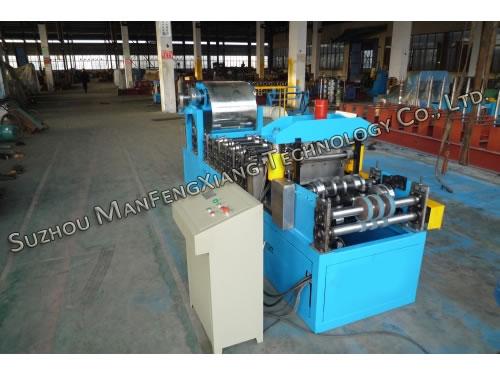

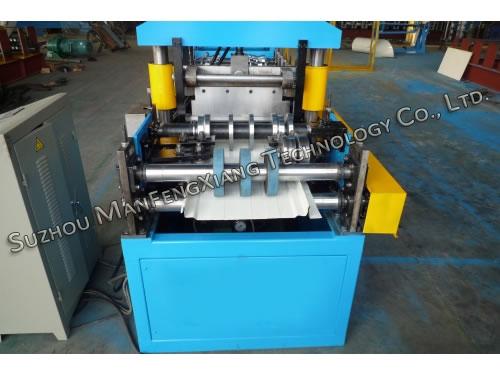

Metal Roof Sheet Roll Forming Machine (Hemming Machine)

Introduction
As a kind of metal roof sheet roll forming machine, the hemming machine is widely used in processing metal sheets into desirable shapes. In roll forming process, a long strip of sheet metal is passed through sets of rolls mounted on consecutive stands. Roll forming is ideal for producing constant-profile parts with long lengths and in large quantities. This hemming machine is highly efficient, fully automatic. Our machines have complete range of dimensions, light and heavy optional. Products of the hemming machine are used for the surface of desks, stainless steel kitchen utensils, electric appliance box cabinet lighting products, metal furniture and other areas.

Specification
Model: MFX-120-1220
Number of stations: 8 Stations
Thickness: 0.3-0.8 mm
Main power: 3 KW
Dimensions of this Metal Roof Sheet Roll Forming Machine: about 4.0 m × 1.0 m × 11.2 m
Forming speed: 30 m/min

Configuration
Decoiler
Feeding Applicator
Hydraulic Pre-Cutting
Roll Forming Unit
Output Table

SUZHOU MANFENGXIANG TECHNOLOGY CO.,LTD. is dedicated in manufacturing hemming roll formers, slitting lines, cut to length line machines and related metal sheet processing equipments. Hemming roll former solves the problem of roof leakage that conventional machines is not able to be handled with. Like many other machines in our company, the metal roof sheet roll forming machines are exempt from quality surveillance inspection.
