Bending Machine

Introduction

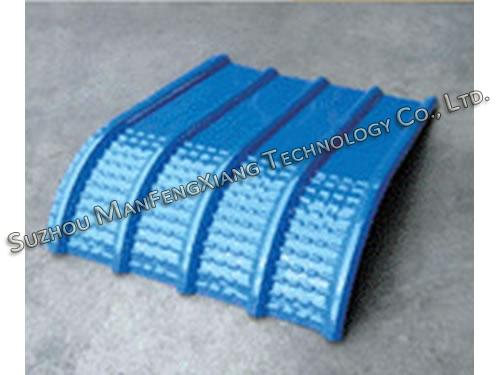

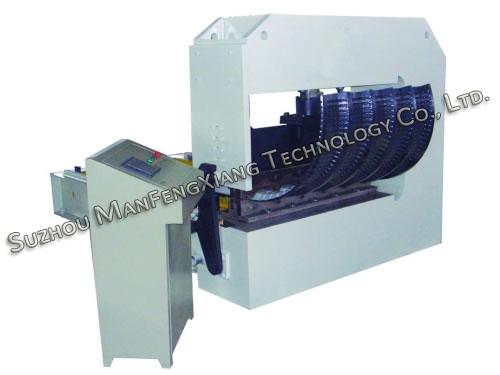

Roof sheet roll forming machine is designed to form metal sheets into arch panels with rollers. An open profile is the most common, but a closed tube-like shape can be created as well. Because the final form is achieved through a series of bends, the metal part does not require a symmetric cross-section.

Features
1. Roof sheet roll forming machine is in welded sheet structure. The internal stress is eliminated by aging treatment, so the machine body is of high strength and good rigidity.
2. Double hydraulic oil cylinder is applied as upper transmission. It is provided with mechanical limit stopper and synchronous torsion bar.
3. This roof sheet roll forming machine adopts famous-brand electric and hydraulic components, which ensures stable and reliable performance as well as high precision.
4. Equipped with digital display device and programmable controller, this machine is easy to operate.
5. Electrical control and manual fine-tuning modes are adopted for accurate positioning of back gauge and stroke of gliding block.

Parameters of Roof Sheet Roll Forming Machine
1. Main Power: 4KW
2. Rolling Speed: 0-15m/min
3. Specification of Material: 0.5 mm-1.2 mm
4. Roll Forming: 3 Stations
5. Roll Material: 45# Steel, Surface with Chrome.
6. Material of the Shaft: 45# Steel, Finish Machining with Thermal Refining
7. Drive by Chain

Our tube mills, roll forming machines, roof sheet roll forming machines and other products have been sold to more than 50 countries and regions, including Russia, France, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Romania and Albania. Our products have won acclaim from all customers at home and abroad. SUZHOU MANFENGXIANG TECHNOLOGY CO.,LTD. is always ready to provide the best solution for your production requirements.
