Simple Slitting Machine

Description

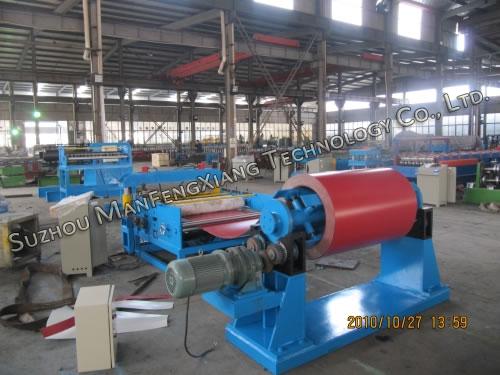

Simple slitting machine is a member of metal coil and sheet slitting line. The whole slitting line is mainly composed of uncoiler, feeder, slitter and recoiler. This line is suitable for cutting or shearing Cr12 forged steel coil and sheet. It cuts the steel coil or sheet to needed width through a successive progress, such as uncoiling, slitting, recoiling, etc.

Features of metal coil and sheet slitting line
1. Hydraulic slitting technology is adopted to make cutting simple and easy.
2. Japan OMRON PLC control system is imported to achieve high automation.
3. This metal slitting machine is suitable for slitting coil and sheet with thickness range from 0.3mm to 1.0mm.
4. Slitting speed can be adjusted according to production requirement.

Specifications of metal coil and sheet slitting line

Slitting Material Cr12 Forged Steel with Quenched and CNC Treatment
Material 1200mm (Width) & 0.3mm to 1.0mm (Thickness)
Slitting Speed 12 to 15 (m/min)
Material of Shafts 45# Steel with Fine Treatment
Main Motor Power of Uncoiling Slitting Recoiling Line 7.5Kw
Hydraulic Station of Steel Slitting Machine 4Kw
Electrical System PLC Control, OMRON Made in Japan

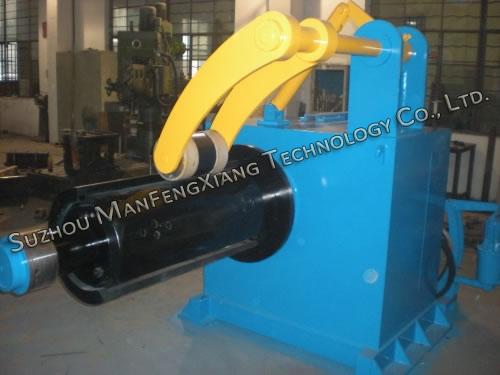

Hydraulic De-Coiler Capacity of Steel Slitting Machine ≤ 5tons, Inner Diameter 508mm
Electricity Requirement of metal coil and sheet slitting line 380V, 3 Phase, 50Hz

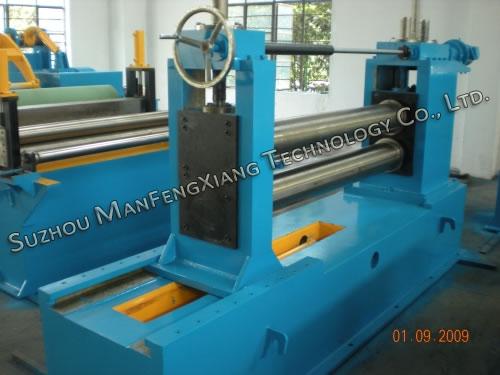

  2 Rubbers for Feeding

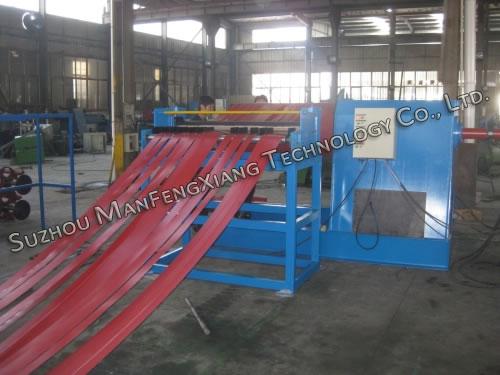

  Side Waste Rewinding for Both Sides
Size 9000 × 1500 × 1400 (mm)
Max. Slits of Uncoiling Slitting Recoiling Line 9

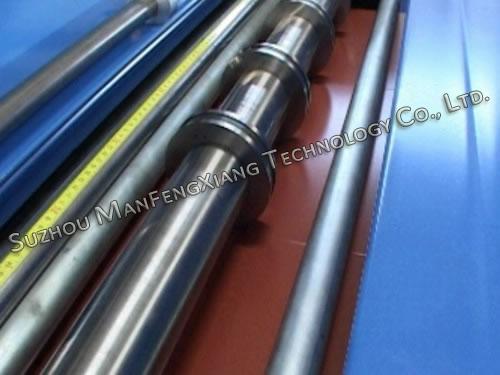

Way of Slitting Round Disk Slitting
Motor for Hydraulic De-Coiler 4 KW
Specification of De-Coiling Ф508 × 1300(Mm)
Expansion Range of The Steel Slitting Machine 450 to 550(Mm)

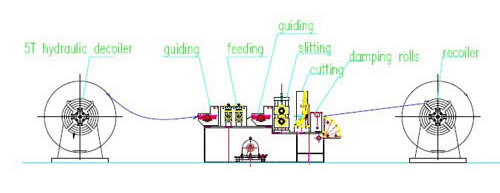

Flow chart of metal coil and sheet slitting line

5T Hydraulic De-coiler→Slitting Part→Separator Part→Recoiled

As specialist tube mills and roll forming machine manufacturer in China, we produce a complete series of machinery products which are widely utilized in construction industry, especially for factory building, warehouse facilities, store facilities, etc. Besides tube mills and roll forming machines, other machines including uncoiler, stacker, hydraulic guillotine shearing machine, CNC hydraulic press brake, slitting line for metal coil and sheet, etc. are also manufactured by us. All our products are featured by high accuracy, easy operation, convenient maintenance and high efficiency. Welcome to visit our company, see first class fabrication facilities and discuss your needs face to face.
