High Speed Sheet Cut-To-Length Machine

Description
Steel sheet cut-to-length line (CTL line) is generally used to cut thin metal plate into the desired length through de-coiling, leveling, sizing and shearing. The coil thickness and width are 0.2 to 3 mm and 300 to 1300 mm respectively. Its cutting length appears to be 1000 to 3000 mm and leveling accuracy is less than ±1.0 mm/m¬2. The cutting speed of cut-to-length line (CTL line) is 20 pcs per minute. Broadly, it is suitable for processing cold rolled steel plate or galvanized steel coil.

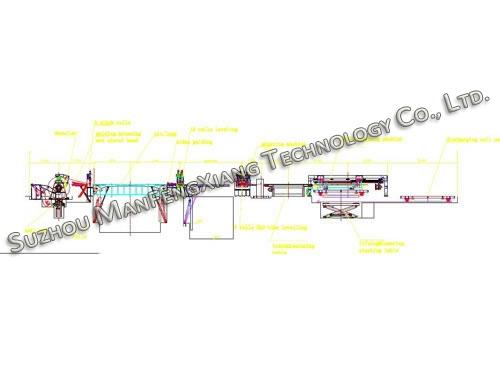

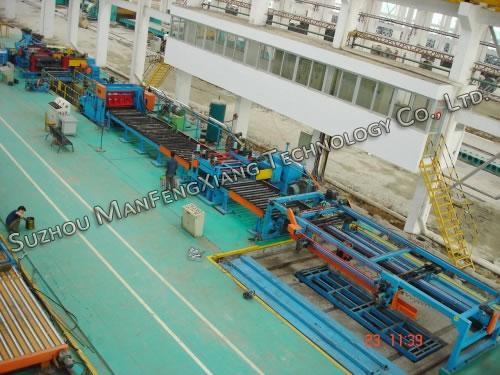

Diagram of Steel Sheet Cut-To-Length Line
Hydraulic Coil Car → Hydraulic Single Head De-Coiler → Guiding and Pressing and Shovel Head Unit--Sides Guiding Organ→2 Pinch Rolls & 17 Rolls Leveling Machine → Pit → Guiding→ 9 Rolls Leveling → Shearing Machine → Sheet Transmission Table → Organ, Hydraulic Shearing Machine, Sheet Transmission Table → Sheet Dropping Machine → Hydraulic Stacker → Hydraulic Control System and Electrical → Control Cabinets

Basic Specification of Steel Sheet Cut-To-Length Line

Steel Coil Grade Бs ≤ 360 N/mm2, Cold Rolled Steel or Galvanized Steel
Coil Thickness (mm) 0.2-3
Coil Width (mm) 300-1300
Coil Outer Diameter (mm) ф1000-ф2100
Coil Inner Diameter ф480-ф508
Cutting Length of Leveling Cut-to-Length Line (mm) 1000-3000
Cutting Length Tolerance (mm) +/-0.3 According to the Length 200
Cutting Diagonal Tolerance (mm) +/-0.3 According to the Length 2000
Leveling Accuracy (mm/m2) ≤ ±1.0
Steel Sheet Cut-to-Length Line Speed (m/min) 0-80
Cutting Speed (pcs/min.) 20 According to 5m Long Sheet
Whole Line Weight (t) 50
Dimension of the Whole Line (m) ( L × W × H) 20 × 8× 3

Components of 0.2mm-2mm × 1300mm Steel Sheet Cut-To-Length Line

Hydraulic Coil Car (15T) 1

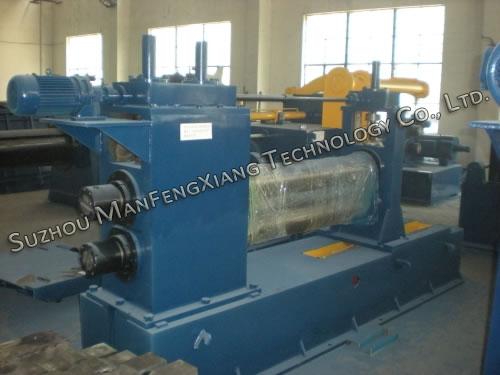

Hydraulic Coil Car (15T) 1
V-shaped Coil Storage Platform 1
Guiding and Pressing and Shovel Head Unit 1

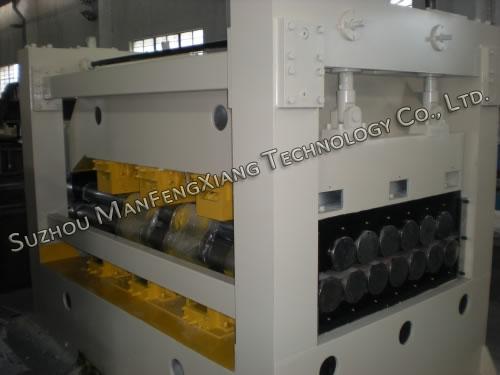

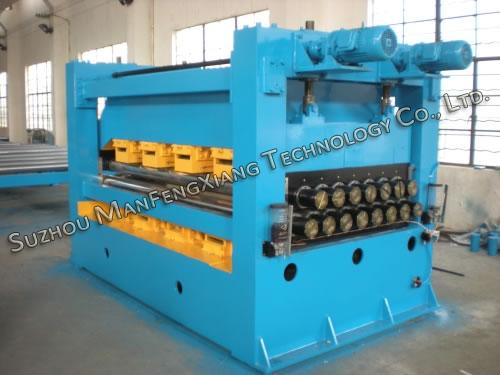

2 Pinch Rolls and First 17 Leveling Rolls 1
Pit (loop) 1
Sheet Sides Guiding Organ 1

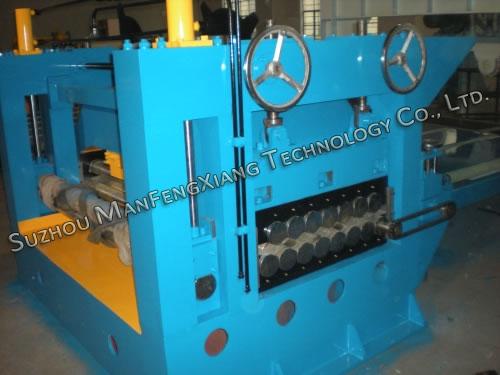

Second-time 9 Rolls Leveling 1 set

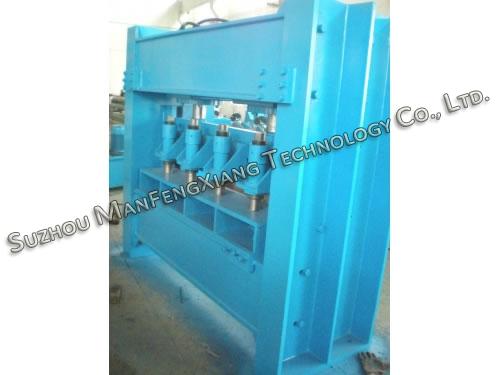

Shearing Machine 1
Sheet Dropping Machine 1
Sheet Pushing Unit of Steel Sheet Cut-To-Length Line 1
Hydraulic Lifting & Lowering Stacking Table 1
Sheet Unloading Coil Cars 2 units
Hydraulic Control Cabinet 1 set
Pneumatic Control System 1 set
Electrical Control Cabinets 1 set
