Tube Making Machines
Description
Tube making machine is complete equipment for welding steel pipes. It is also named pipe welder or welded pipe mill. Steel tube production line can be classified into high frequency weld pipe mill line and stainless steel pipe mill line.
Application
Tube making machine is mainly used for manufacturing electric heating tubes, refrigerator pipes, automobile frame pipes, fitness equipment pipes, furniture tubes, pipes for cooler, API pipes, pressure transmission pipes, architectural pipes, structural pipes, etc.
Production Process of Tube Making Machine
Raw Material (Strip Steel Roll) → Material Feeding → Cut and Butt Welding (Hand Welding) → Material Storehouse → Material Feeding and Molding → High Frequency Welding → Removing Outer Burr → Cooling Water → Fix and Correct Diameter → Cut with Computerized Saw → Pipe Falling Down → Checking → Put in Storehouse
Components of Tube Making Machine

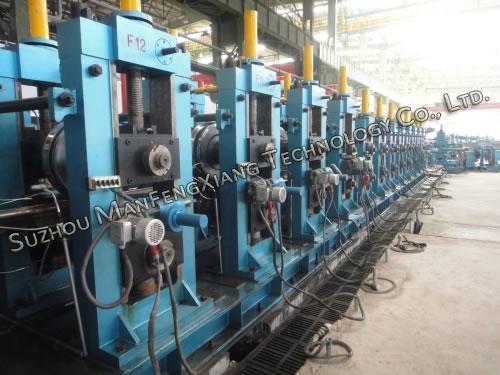

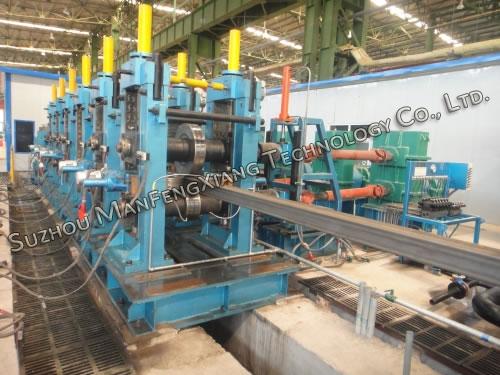

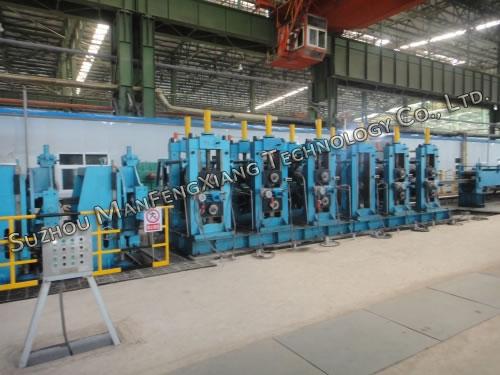

Steel tube production line is composed of double side un-coiler, hoop cage or horizontal accumulator, main machine (forming machine, roller system of forming, seam guide, high frequency induction welding machine, roller system for moving, burr removing frame, water cooling system, sizing machine, roller system of leveling, speed testing wheel and Turkish frame), auto flying saw controlled by computer, run out table, electric control equipment and high frequency welding machine.
Details Introduction
Detailed models of tube making machine includes MFX16, MFX20, MFX32, MFX45, MFX50, MFX60, MFX76, MFX89, MFX125, MFX165, MFX219, MFX273, MFX325, MFX406, MFX508, MFX610, MFX660 and MFX720.
Parameters of Tube Making Machine
| Equipment Type | Outside Diameter (mm) | Thickness (mm) | Production Rate (m/min) |
| MFX16 | 7.5-16 | 0.3-1.0 | 0-100 |
| MFX20 | 10-25 | 0.3-1.5 | 0-100 |
| MFX32 | 13-38 | 0.6-1.8 | 0-100 |
| MFX45 | 16-50 | 0.7-2.0 | 0-90 |
| MFX50 | 20-63.5 | 0.8-3.0 | 0-80 |
| MFX60 | 25-76 | 1.0-3.2 | 0-80 |
| MFX76 | 32-89 | 1.2-3.75 | 0-80 |
| MFX89 | 35-100 | 1.2-4.5 | 0-70 |
| MFX125 | 50-130 | 2.0-5.0 | 0-60 |
| MFX165 | 76-165 | 2.0-6.0 | 0-50 |
| MFX219 | 89-219 | 3.0-8.0 | 0-50 |
| MFX273 | 100-273 | 4.0-12.0 | 0-45 |
| MFX325 | 89-325 | 3.0-12.7 | 0-40 |
| MFX406 | 114-406 | 4.0-16.0 | 0-40 |
| MFX508 | 219-508 | 4.0-19.1 | 0-40 |
| MFX610 | 219-610 | 4.0-19.1 | 0-40 |
| MFX660 | 219-660 | 4.0-22.0 | 0-40 |
| MFX720 | 219-720 | 4.0-45.0 | 0-40 |
