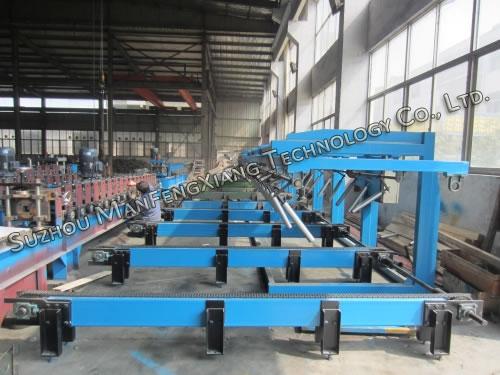

High Speed Roofing Roll Forming Machine

Description
High Speed Roofing Roll Forming Machine is also named roofing sheet making machine or roof panel roll forming machine. Featuring high efficiency, high flexibility, good performance and low production cost, it is the best choice for producing cold rolled metal sheet products.

Application
Roofing sheet making machines are extensively used in building large-scale steel-structure buildings, such as warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, greenhouses, etc.

Features
1. Our roof panel roll forming machine is fabricated using premium quality components and high-end technology in synchronization with the set industrial standards.
2. For its corrosion resistance, sturdy construction and operational fluency, the roofing sheet making machine is widely applied.
3. It is really a new type of energy-saving and high-efficiency roof sheets roll former.
4. It also features high forming speed, low noise, stable transmission, easy operation, good appearance, and so on.

Specification

Rolling speed  45m/min (not include cutting time)
 Rolling thickness  0.4-1.2mm color steel and galvanized steel
 Control system  PLC (Panasonic)
 Material width  1220mm (Effective width 1000mm)
 Roller stations  22 stations
 Roller material  45#forge steel, coated with chrome
 Shaft diameter  85mm
 Shaft material  40Cr high quality steel
 Power of the main reducer  11Kw
 Power of feeding motor  3Kw (servo motor)
 Hydraulic station power  5.5Kw
 Hydraulic pressure  16Mpa
 Material of cutter  Cr12Mov, quenched to HRC58-60°
 Tolerance  3m±1.5mm
 Electric source  380V, 50HZ,3 phase
 Way of drive  1.2 inch chain

SUZHOU MANFENGXIANG TECHNOLOGY CO.,LTD. is engaged in supplying different steel processing equipments, including tube mills, roll forming machines, etc. Besides tube mills and roll forming machines, other machines manufactured by us, including uncoiler, stacker, hydraulic guillotine shearing machine, CNC hydraulic press brake, and other machines also feature high accuracy, easy operation, convenient maintenance and high efficiency. Our tube mills, roof panel roll forming machines (roof sheet making machines) and other products have been passed CE certification and sold to more than 50 countries and regions, including Russia, France, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Romania and Albania. Manfengxiang is always ready to provide the best solution for your production requirements.
