Roofing/Wall Panel Roll Forming Machine

Description
This production line consists of feeding unit, uncoiler, feeding guide, roll forming machine, cutter, automatic stacker, hydraulic system and electric control system. This kind of cold roll forming machine is widely used for making various metal wall panels and roof panels for steel constructions, steel structure projects, containment systems, etc.

Features
1. Roof/wall panel roll forming machine can produce strong wall panels with beautiful appearance.
2. This roof/wall panel roll forming machine adopts advanced and innovative technology that can provide convenient roller change.
3. This metal panel forming machine is also equipped with PLC control and touch screen.
4. Production speed is adjustable according to need and the line speed of this panel rollformer can reach up to 30 m/min.
5. Our roof/wall panel roll forming machines are designed and manufactured with a higher level in domestic supplier competition, especially in manufacturing, assembling and material using.
6. We can produce wall panel forming machines according to customers’ requirements.

Parameters of Sub Catalog
1. Roofing Panel Roll Forming Machine

Material thickness 0.3mm to 0.8mm
Working speed 12m/min to 15m/min
Roll station 18 stations (depend on the final profile)
Main power 5.5KW
Hydraulic power 3KW
Control system PLC Panasonic
Drive By chain
Material thickness 0.3mm to 0.8mm
Working speed 25m/min to 30m/min
Roll station 18 stations (depend on the final profile)
Main power 7.5KW
Hydraulic power 3KW
Control system PLC Panasonic
Drive By chain

Pictures of Roofing Panel Roll Forming Machine

2. Wall Panel Forming Machine

Material thickness 0.3mm to 0.8mm
Working speed 12m/min to 15m/min
Roll station 18 stations (depend on the final profile)
Main power 5.5KW
Hydraulic power 3KW
Control system PLC Panasonic
Drive By chain
Material thickness 0.3mm to 0.8mm
Working speed 25m/min to 30m/min
Roll station 18 stations (depend on the final profile)
Main power 7.5KW
Hydraulic power 3KW
Control system PLC Panasonic
Drive By chain

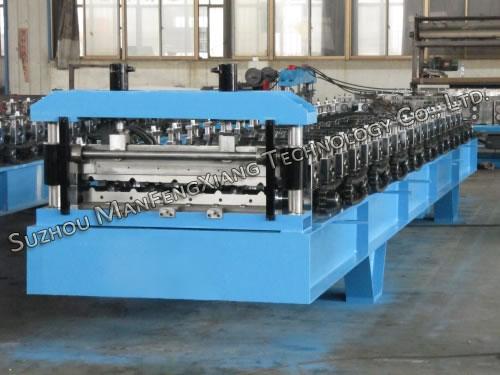

Pictures of Wall Panel Forming Machine

SUZHOU MANFENGXIANG TECHNOLOGY CO.,LTD. is engaged in supplying different steel processing equipments, including tube mills, roll forming machines, etc. Besides tube mills and roll forming machines for roof and wall panel, other machines manufactured by us, including uncoiler, stacker, hydraulic guillotine shearing machine, CNC hydraulic press brake, and other machines also feature high accuracy, easy operation, convenient maintenance and high efficiency. Our steel panel forming machines and other products have been passed CE certification and sold to more than 50 countries and regions, including Russia, France, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Romania and Albania. Manfengxiang is always ready to provide the best solution for your production requirements.
