Gutter Roll Forming Machine

Description

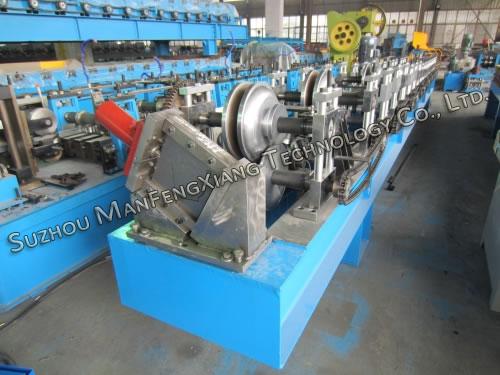

As cold roll forming equipment, gutter roll forming machine is used to make half round gutter, seamless gutter or gutter with specific profiles. It is important equipment for the roof drainage system in building industry. The gutter can be inside gutter and outside gutter. The production line of our seamless gutter machine is composed of 3T manual decoiler, roll forming machine include the guide and feeding device, PLC cabinet, cutting blade driven by hydraulic power, and output table.

Features of Gutter Roll Forming Machine
1. It has 17 roll stations and a series of accessory rollers.
2. The driving system is 1 inch single chain driving.
3. The working speed is pretty fast, 12m/min to 16m/min.

Advantages
1. This gutter roll forming production line can run automatically. You just need to input the products length, batches and other datas to the PLC control system.
2. Strong base frame is adopted to avoid vibration.
3. All the rollers have been polished on the surface to guarantee the accuracy.
4. We can design gutter roll forming machine according to customer’s different sizes and shapes.

Working flow of seamless gutter machine
Decoiler→feeding guide→roll forming machine→hydraulic cutting→output table

Parameter of gutter roll forming machine

1. Diameter of shaft ф60mm
2. Cutting system Hydraulic cutting
3. Working speed 12m/min to 16m/min
4. Thickness 0.4mm to 0.75mm
5. Material of shaft GCr12 steel, quenching HRC580-620
6. Material of blade Cr12, quenched 58-62
7. Control system PLC, Panasonic
8. Size of machine 7m × 0.75m × 1.3m

SUZHOU MANFENGXIANG TECHNOLOGY CO.,LTD. is engaged in supplying different steel processing equipments, including tube mills, rollforming equipments, etc. Besides tube mills and roll forming machines, other machines manufactured by us, including uncoiler, stacker, hydraulic guillotine shearing machine, CNC hydraulic press brake, seamless gutter machine and other machines also feature high accuracy, easy operation, convenient maintenance and high efficiency. Our tube mills, gutter roll forming machines and other products have been passed CE certification and sold to more than 50 countries and regions, including Russia, France, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Romania and Albania. Manfengxiang is always ready to provide the best solution for your production requirements.
