Double Layer Roofing Wall Panel Roll Forming Machine

Description
This double layer roof panel and wall panel roll forming production line consists of feeding unit, uncoiler, feeding guide, roll forming machine, cutter, automatic stacker, hydraulic system and electric control system. This roll forming line is widely used for making various metal wall panels and roof panels in steel constructions, steel structure projects and containment systems, etc.

Features
1. This roof/wall panel roll forming machine can produce roof panels and wall panels with beautiful appearance and high strength.
2. This metal panel forming machine is also configured with PLC control system and touch screen.
3. Production speed is adjustable according to need.
4. Production speed of this panel roll forming line can reach up to 30 m/min.
5. Our double layer roof/wall panel roll forming machines are with a higher level, especially in manufacturing, assembling and material using.
6. We can produce metal panel forming machines according to customers’ requirements.

Parameters

1. Product spec. 1200mm
2. Working speed 12m/min to 15m/min (not including cutting time)
3. Roller stations Up 18 stations, down 18 stations
4. Roller material 45# forged steel, machined with numerical control, polished and coated with chrome
5. Diameter of Shaft 76mm
6. Main power 5.5kw
7. Hydraulic power 4kw
8. Hydraulic pressure 12Mpa
9. Control PLC (Panasonic)
10. Size 9000 × 1700 × 1800 (mm)
11. Cutter material Cr12Mov
12. Thickness of formed steel 0.3mm to 0.7mm (0.5 is designed as standard thickness)
13. Length tolerance ±1.5mm
14. Drive 1 inch single chain

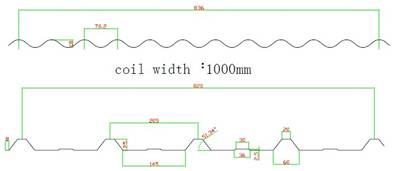

Drawing profile of double layers

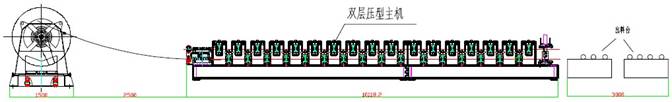

Machine profiles

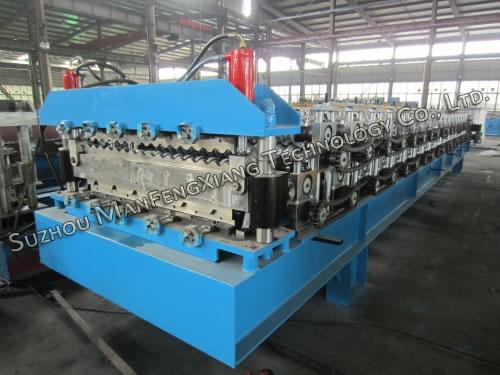

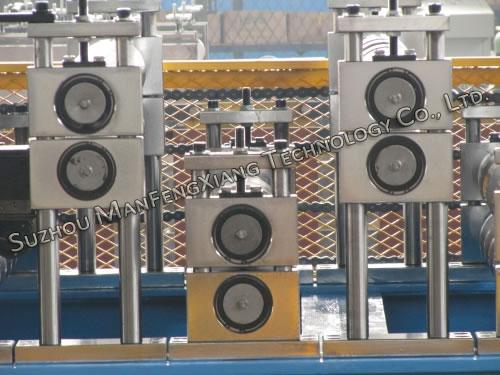

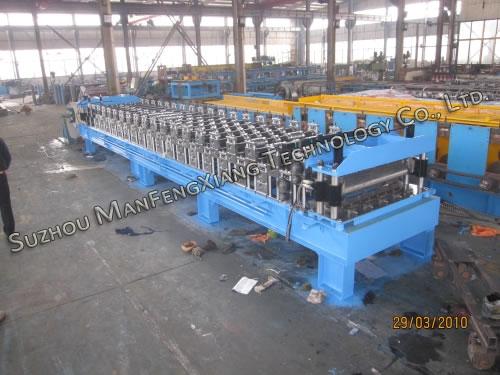

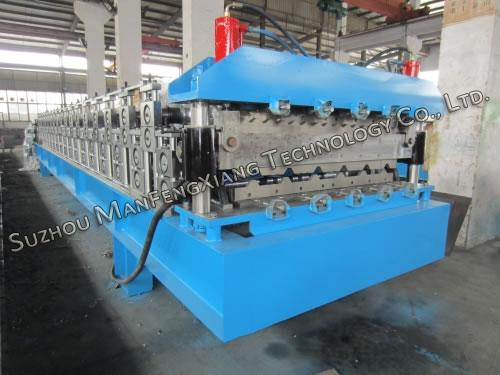

Pictures of roll forming machine for double layer roof panel and wall panel

SUZHOU MANFENGXIANG TECHNOLOGY CO.,LTD. is dedicated in designing and supplying manufacturing different steel cutting, bending and forming equipments, including tube mills, roll forming machines, etc. Apart from tube making machine and steel roll forming machine, we devoted ourselves to the research & development of various kinds of other products related to steel structure, such as hydraulic press brake machine, roll former, shearing machine, slitting machine, cutting machine, production lines of guardrail sheet for expressway, shutter doors, and garages doors, etc. Our double layer roof/wall panel roll forming machines are well received by customers from North America, South America, Europe, Middle East, Southeast Asia, Russia, Australia and other regions. Welcome to visit our company and discuss your needs face to face.
